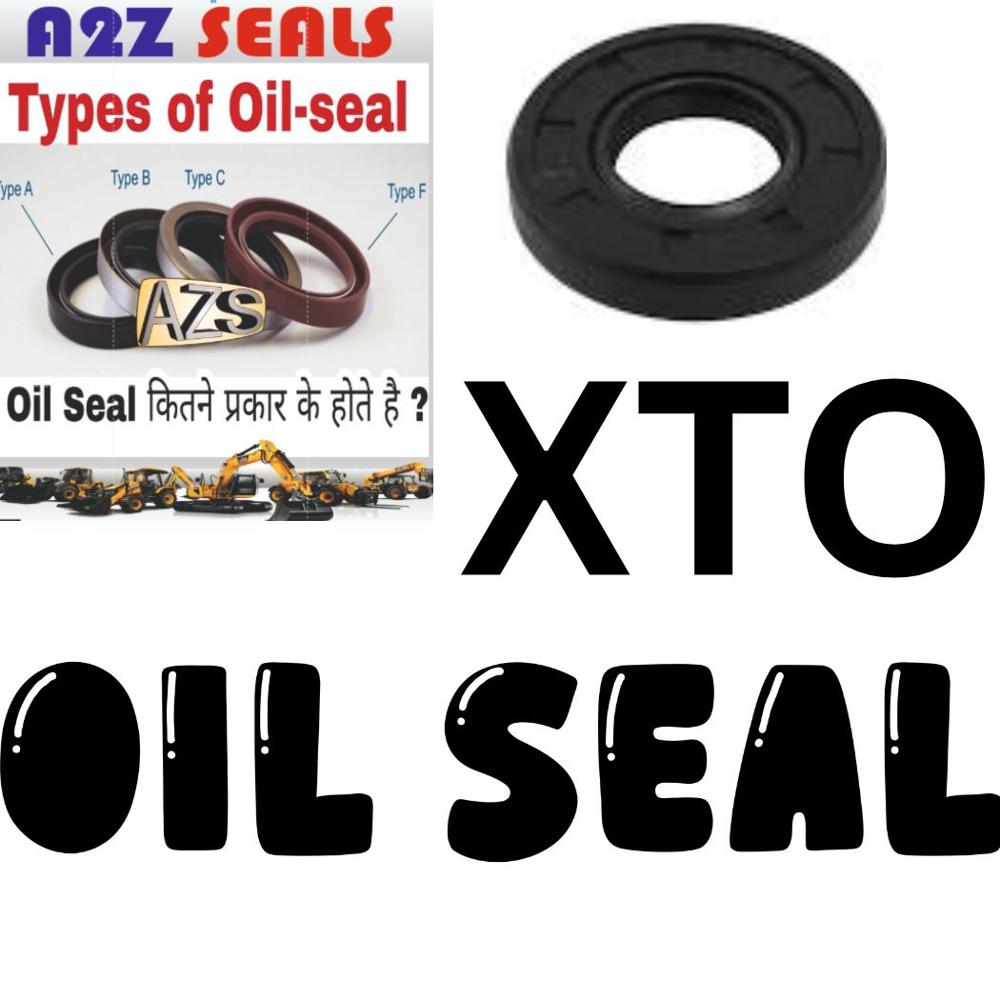

XTO Oil Seal (TC / Skeleton Oil Seal) High Performance Rotary Shaft Seal

An XTO oil seal, commonly known as a TC or skeleton oil seal, is a precision-engineered rotary shaft sealing component designed to prevent leakage of lubricants such as oil and grease while effectively blocking dust, dirt, and moisture from entering the system.

These seals are widely used in automotive engines, motorcycle assemblies (crankshafts, wheel hubs), industrial gearboxes, and rotating machinery, where reliable sealing performance is essential for long-term durability and efficiency.

Key Features of XTO Oil Seals

Double-Lip Sealing Design

XTO oil seals feature a dual-lip structure:

• Primary sealing lip ensures effective oil and grease retention
• Secondary dust lip prevents external contaminants from entering

This design provides superior protection and extends equipment life.

Metal Reinforced Skeleton Structure

The seals are built with a strong internal metal case (TC/TG4 profile) that maintains shape stability and ensures proper fit inside the housing bore, even under high pressure and rotational stress.

Garter Spring Technology

A high-tension garter spring is integrated into the sealing lip to maintain consistent radial pressure against the rotating shaft, ensuring leak-free performance over time.

Material Options

NBR (Nitrile Rubber)

• Ideal for standard oil and grease applications
• Operating temperature range: -40C to 120C
• Excellent wear resistance and cost-effective performance

FKM (Viton / Fluororubber)

• Suitable for high-temperature and chemically aggressive environments
• Temperature resistance: up to 240C+
• High resistance to acids, fuels, and industrial chemicals

Standard Sizing Format

XTO oil seals are measured in a standard metric format:

Inner Diameter Outer Diameter Thickness (mm)

Example:
18 mm 30 mm 10 mm

Proper sizing is critical to ensure a perfect fit and optimal sealing performance.

How to Choose the Right Replacement Oil Seal

To select the correct XTO oil seal replacement, follow these steps:

• Measure the exact inner diameter, outer diameter, and thickness of the existing seal
• Check the OEM part number for your machine or vehicle
• Identify operating conditions such as temperature, pressure, and lubricant type

Where to Buy XTO Oil Seals

We catter high-quality rotary shaft seals including industrial marketplaces

• General-purpose metric seals from industrial suppliers and online marketplaces
• Heavy-duty and high-temperature seals from specialized industrial component vendors
• OEM-specific seals for motorcycles and vehicles from authorized spare parts dealers

Applications of XTO Oil Seals

Automotive engines and transmissions

Motorcycle crankshafts and wheel hubs

Industrial gearboxes and pumps

Agricultural and construction machinery

Superior Leakage Prevention

XTO Oil Seals are designed to provide reliable protection against lubricant leakage and contamination from external impurities. Their precision engineering and sturdy round-type construction make them ideal for demanding applications in both automotive and industrial machinery.


Adaptability Across Sectors

These seals are compatible with a range of equipment, including rotary or reciprocating systems in two-wheelers, four-wheelers, and industrial vehicles. Sizes are customizable to fit specific requirements, ensuring superior sealing and efficient performance in diverse working environments.


Certified Quality and Durability

Manufactured to ISO/TS 16949 standards, XTO Oil Seals combine a tough NBR/metal build and advanced compression molding techniques. The combination of chemical, corrosion, and pressure resistance delivers dependable performance for over 1,000 hours, even under harsh operating conditions.
